Thông số kỹ thuật

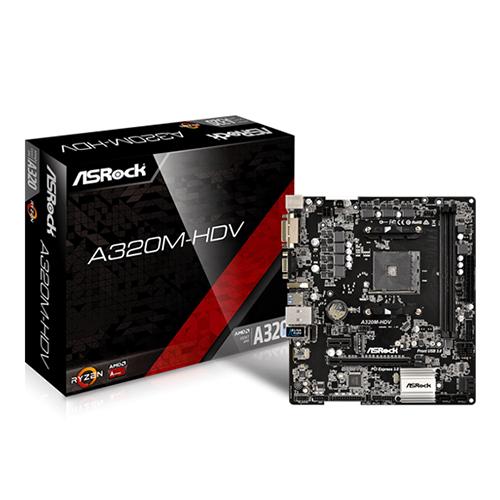

Mainboard Asrock A320M-HDV
Asrock A320M-HDV
– Socket: AMD AM4 A-Series (Bristol Ridge) và Ryzen (Summit Ridge, Raven Ridge and Pinnacle Ridge)
– Kích thước: m-ATX
– Khe cắm RAM: 2 khe (Tối đa 32GB DDR4 3200(O.C.)/2933/2667/2400/2133 MHz)
– Khe cắm mở rộng: 1 x PCI Express 3.0 x16, 1 x PCI Express 2.0 x1
– Khe cắm ổ cứng: 4 x SATA3 6.0 Gb/s, 1 x Ultra M.2
Sản phẩm được miễn phí giao hàng
Chính sách bán hàng
Cam kết chính hãng 100%
Miễn phí giao hàng từ 800K
Đổi trả miễn phí trong 10 ngày
Dịch vụ khác
Sửa chữa đồng giá 150.000đ
Bảo hành tại nhà.
Mô tả
Thông số kỹ thuật
| CPU | – Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) – Digi Power design – 7 Power Phase design – Supports CPU up to 65W |
| Chipset | – AMD Promontory A320 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 non-ECC, un-buffered memory – AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory – Max. capacity of system memory: 32GB – 15μ Gold Contact in DIMM Slots |
| BIOS | – 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment |
| AUDIO | – 7.1 CH HD Audio (Realtek ALC887 Audio Codec) – Supports Surge Protection – ELNA Audio Caps |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111GR – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports LAN Cable Detection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Slots | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs/ Raven Ridge CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) – 1 x PCI Express 2.0 x1 Slot |
| Form Factor | – Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm – Solid Capacitor design |
| OS | – Microsoft® Windows® 10 64-bit |
