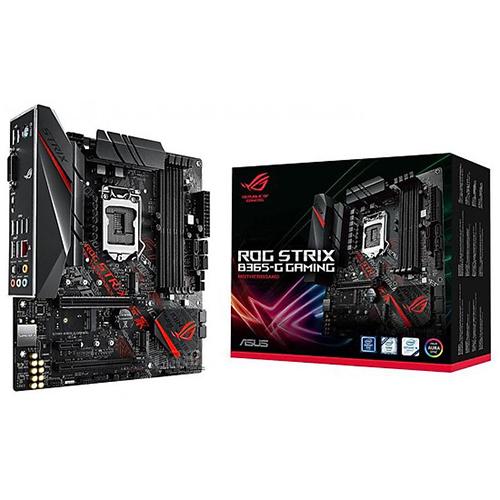

Mainboard ASUS ROG STRIX B365-G GAMING

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

ROG STRIX B365-G GAMING

CPU hỗ trợ

Intel

Chipset

B365

RAM hỗ trợ

4 x DDR4 memory slots, support up to 64GB DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode) *¹
1 x PCIe 3.0 x1

Ổ cứng hỗ trợ

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port

Cổng kết nối (Internal)

1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s)

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red)Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port

LAN / Wireless

Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Kích cỡ

mATX Form Factor
24.4 cm x 24.4 cm
