Thông số kỹ thuật

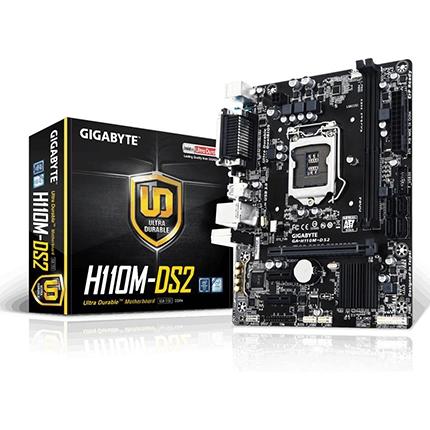

Mainboard GIGABYTE GA-H110M-DS2-DDR4
GIGABYTE™ GA-H110M-DS2-DDR4 – Intel H110 chipset – Socket LGA 1151 Support for Intel® Core™ i7/i5/i3/Pentium®/Celeron®
RAM: 2 DDR4 DIMM sockets supporting up to 32 GB. Support for DDR4 2133 MHz memory modules
Audio: Realtek® ALC887 codec 2/4/5.1/7.1-channe
VGA: Intel® HD Graphics: 1 x D-Sub
LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
USB: 4*USB2.0/3.0 port + 6*USB 2.0/1.1 port
Sản phẩm được miễn phí giao hàng
Chính sách bán hàng
Cam kết chính hãng 100%
Miễn phí giao hàng từ 800K
Đổi trả miễn phí trong 10 ngày
Dịch vụ khác
Sửa chữa đồng giá 150.000đ
Bảo hành tại nhà.
Mô tả
Thông số kỹ thuật
| CPU | – Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package – L3 cache varies with CPU |
| Chipset | Intel® H110 Express Chipset |
| Bộ nhớ | – 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory – Dual channel memory architecture – Support for DDR4 2400/2133 MHz memory modules – Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) – Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Card đồ họa tích hợp | – Integrated Graphics Processor – Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – Maximum shared memory of 1024 MB |
| Âm thanh | – Realtek® ALC887 codec – High Definition Audio – 2/4/5.1/7.1-channel – Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Khe cắm mở rộng | – 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) – 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Giao diện lưu trữ | Chipset: 4 x SATA 6Gb/s connectors |
| USB | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Điều khiển I/O | iTE® I/O Controller Chip |
| BIOS | – 2 x 64 Mbit flash – Use of licensed AMI UEFI BIOS – Support for DualBIOS™ – PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Hệ điều hành | – Windows® 10 64-bit (for 7th Generation Intel® Processors) – Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors) |
| Hệ số khuôn | Micro ATX Form Factor; 22.6cm x 17.4cm |
