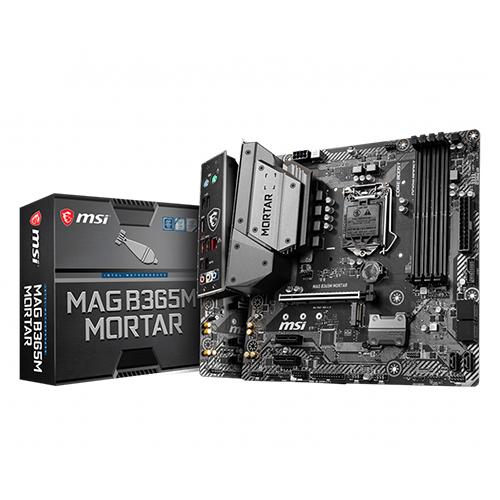

Mainboard MSI B365M Mortar

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

B365M Mortar

CPU hỗ trợ

Intel

Chipset

B365

RAM hỗ trợ

4 x DDR4 memory slots, support up to 64GB, Supports DDR4 2666/ 2400/ 2133 MHz

Khe cắm mở rộng

1 x PCIe 3.0 x16 slot

2 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

6 x SATA 6Gb/s ports¹

1 x M.2 slots (Key M)

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

2 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x Serial port connector

1 x Parallel port connector

1 x 3-pin RAINBOW LED connector

1 x 4-pin RGB LED connector

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

Mouse Port

Intel GAMING LAN

HD Audio Connectors

Keyboard Port

USB 2.0 ports

HDMI Port

USB 3.1 Gen1 Type-A ports

USB 3.1 Gen1 Type-A+C ports

LAN / Wireless

1 x Intel^® I219-V Gigabit LAN controller

Kích cỡ

9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

Micro-ATX Form Factor
