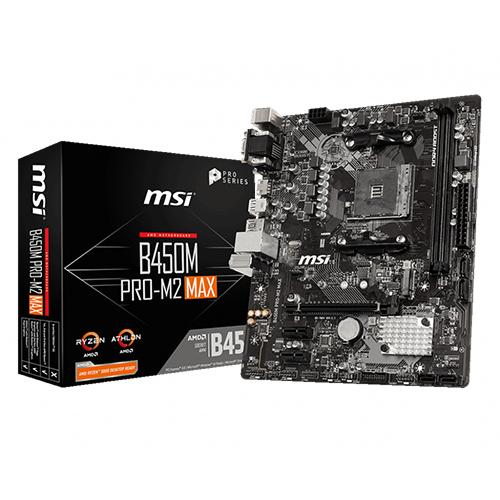

Mainboard MSI B450M PRO-M2 MAX

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

B450M PRO-M2 MAX

CPU hỗ trợ

AMD

Chipset

B450

RAM hỗ trợ

2 x DDR4 memory slots, support up to 32GB

Khe cắm mở rộng

1 x PCIe 3.0 x16 slot (PCI_E1), 2 x PCIe 2.0 x1 slots

Ổ cứng hỗ trợ

4 x SATA 6Gb/s ports, 1 x M.2 slot (Key M)

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

1 x Front panel audio connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x LED strip connector

1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

Mouse

VGA Port

USB 2.0

LAN Port

HD Audio Connectors

Keyboard

DVI-D Port

HDMI Port

USB 3.2 Gen1

LAN / Wireless

1 x Realtek^® 8111H Gigabit LAN controller

Kích cỡ

9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)

m-ATX Form Fact
